Formatting

Introduction

All quantities, vectors, matrices and quantity tables, both relative and absolute, can be formatted in a flexible way. All quantity-related types have a format() method that takes a Format object as a parameter. The Format object specifies the format that needs to be applied to the quantity-related type. Specific formatters exist for quantities, vectors, matrices and quantity tables. The format has default values that are called with the method instance(). Changes are applied to the settings to specify the format. As an example, let's take a length in miles, and format it in meters as a floating point variable with a thousands separator:

Length l = Length.of(12.43, "mi");
Length l = Length.of(12.43, "mi");
String s = l.format(QuantityFormat.instance().setDisplayUnit("m")
    .setGroupingSeparator(true));
System.out.println(s);

This will print:

20,004.14592 m

All quantity-related types have four methods:

• toString() returns a String with a representation of the quantity-related object using the default formatting rules.
• format() returns a String with a representation of the quantity-related object using the default formatting rules.
• format(Unit unit) returns a String, with the quantity-related object expressed in the given unit, using the default formatting rules.
• format(Format format) returns a String representation of the quantity-related object, using the provided formatting rules.

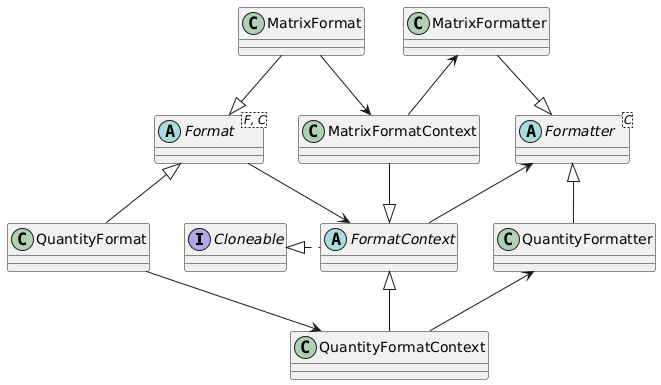

All Format subclasses implement methods for formatting the number, the unit, the locale, and the reference in case the object is absolute. The formatting rules for these four categories will be discussed below.

Number formatting settings

The following settings for formatting the number part (entries in a vector, table or matrix, or the number of a quantity) can be used:

Variable length formatting

The method setVariableLength() formats the number in a left-aligned manner without a fixed length. This format ignores the setWidth() and setDecimals() settings, but it has several settings to control the output:

• setMaxSigDigits(int) indicates the maximum number of significant digits. The default value is 10. When the maximum number of significant digits is 5, numbers are formatted in such a way that at most 5 significant digits are used:

| Number               | Formatted      |
| -------------------- | -------------- |
| 12.3                 | [12.3 m]       |
| 12.34567             | [12.346 m]     |
| 12345.67             | [12346 m]      |
| 12345678.9           | [1.2346E+07 m] |
| 123456789123         | [1.2346E+11 m] |

• setSciThreshold(int) indicates when a fraction with an absolute value less than 1 should be formatted using scientific notation. Note that the integer parameter has to be negative. The default value is -3. When the threshold is, e.g., -3, numbers with an absolute value smaller than 10^-3 are formatted using scientific notation. Numbers that are larger use floating point notation, where the number of significant digits does not count the leading zeros. Suppose maxSigDigits = 5 and sciThreshold = -3:

| Number               | Formatted      |
| -------------------- | -------------- |
| 0.123                | [0.123 m]      |
| 0.1234567            | [0.12346 m]    |
| 0.01234567           | [0.012346 m]   |
| 0.001234567          | [0.0012346 m]  |
| 0.0001234567         | [1.2346E-04 m] |

• setGroupingSeparator(boolean) turns the grouping separator on or off. By default, grouping is set to false.
• setUpperE(boolean) sets sets the exponent symbol to E if true and to e if false. The default value is true.

Fixed-size formatting

The method setFixedFloat() formats the number using a fixed number of positions and a fixed number of decimals. This is an ideal format for matrices and column vectors, since the numbers (and decimal points) will be aligned. The following methods control the output:

• setWidth(int) sets the total width of the number, including decimals, decimal point, exponent for scientific notation, minus sign, and grouping separators. The default width is 12.
• setDecimals(int) sets the number of decimals. The default number of decimals is 3.
• setGroupingSeparator(boolean) turns the grouping separator on or off. By default, grouping is set to false.

Of course, numbers have to be in the same order of magnitude to make this format viable. Technically, if W is the width and D is the number of decimals, the Java format used is %W.Df without a grouping separator, and %,D.Wf with the grouping separator. Suppose width = 12 and decimals = 3:

| Number               | Formatted            |
| -------------------- | -------------------- |
| 12.3                 | [      12.300 m]     |
| 12.34567             | [      12.346 m]     |
| 12345.67             | [   12345.670 m]     |
| 12345678.9           | [12345678.900 m]     |
| 123456789123         | [123456789123.000 m] |
| 0.123                | [       0.123 m]     |
| 0.1234567            | [       0.123 m]     |
| 0.01234567           | [       0.012 m]     |
| 0.001234567          | [       0.001 m]     |
| 0.0001234567         | [       0.000 m]     |

Note that when a small number (e.g., 0.00012345) is formatted with, e.g. a width of 10 and 3 decimals, it will return 0.000. See the example table above.

Note that forcing large numbers into floating point format where the width is not sufficient will lead to a formatted string with a length larger than the width that was set. See the example table above.

Scientific formatting

setScientific() formats the number using scientific formatting in the form of x.yyyyE+zz or x.yyyyE-zz. This is an ideal format for numbers with varying magnitudes. For matrices and column vectors, the numbers (and decimal points) will be aligned. The following methods control the output:

• setWidth(int) sets the total width of the number, including decimals, decimal point, exponent for scientific notation, minus sign, and grouping separators. The default width is 12.
• setDecimals(int) sets the number of decimals. The default number of decimals is 3.
• setUpperE(boolean) sets sets the exponent symbol to E if true and to e if false. The default value is true.

Technically, if W is the width and D is the number of decimals, the Java format used is %W.DE with upperE set to true, and %W.De with upperE set to false.

| Number               | Formatted        |
| -------------------- | ---------------- |
| 12.3                 | [   1.230E+01 m] |
| 12.34567             | [   1.235E+01 m] |
| 12345.67             | [   1.235E+04 m] |
| 12345678.9           | [   1.235E+07 m] |
| 123456789123         | [   1.235E+11 m] |
| 0.123                | [   1.230E-01 m] |
| 0.1234567            | [   1.235E-01 m] |
| 0.01234567           | [   1.235E-02 m] |
| 0.001234567          | [   1.235E-03 m] |
| 0.0001234567         | [   1.235E-04 m] |

Engineering formatting

setEngineering() formats the number using engineering formatting in the form of x.yyyyE+zz or x.yyyyE-zz, where the value of zz is always a multiple of three. You can therefore easily interpret the number in 'micro', 'milli', 'kilo', 'mega' terms. This is an ideal format for numbers with varying magnitudes that have to be interpreted using SI-prefixes. For matrices and column vectors, the numbers (and decimal points) will be aligned. The following methods control the output:

• setWidth(int) sets the total width of the number, including decimals, decimal point, exponent for scientific notation, minus sign, and grouping separators. The default width is 10.
• setDecimals(int) sets the number of decimals. The default number of decimals is 3.
• setUpperE(boolean) sets sets the exponent symbol to E if true and to e if false. The default value is true.

Technically, if W is the width and D is the number of decimals, the Java format used is %W.DE with upperE set to true, and %W.De with upperE set to false.

| Number               | Formatted        |
| -------------------- | ---------------- |
| 12.3                 | [  12.300E+00 m] |
| 12.34567             | [  12.346E+00 m] |
| 12345.67             | [  12.346E+03 m] |
| 12345678.9           | [  12.346E+06 m] |
| 123456789123         | [ 123.457E+09 m] |
| 0.123                | [   0.123E+00 m] |
| 0.1234567            | [   0.123E+00 m] |
| 0.01234567           | [   0.012E+00 m] |
| 0.001234567          | [   1.235E-03 m] |
| 0.0001234567         | [   0.123E-03 m] |

Note that 12 positions are needed with 3 decimals for engineering formatting: 1 for the optional negative sign, 3 for the value between 0 and 999, 1 for the decimal point, 3 for the fraction, 4 for the E+xx or E-xx exponent. Total: 1+3+1+3+4=12 positions.

Fixed-size formatting with scientific fallback

setFixedWithSciFallback() formats the number using setFixedFloat() if it fits the set width and will use setScientific() when the resulting string does not fit the set width. This will enable aligned columns for vectors or matrices, but uses precision when space allows. Widths and decimals that can store all numbers are w.d = 9.1, 10.2, 11.3 etc. For width 9 and 1 decimal, the largest number in terms of size is -1.2E+300. The following methods control the output:

• setWidth(int) sets the total width of the number, including decimals, decimal point, exponent for scientific notation, minus sign, and grouping separators. The default width is 12.
• setDecimals(int) sets the number of decimals. The default number of decimals is 3.
• setGroupingSeparator(boolean) turns the grouping separator on or off. By default, grouping is set to false.
• setUpperE(boolean) sets sets the exponent symbol to E if true and to e if false. The default value is true.

| Number               | Formatted        |
| -------------------- | ---------------- |
| 12.3                 | [      12.300 m] |
| 12.34567             | [      12.346 m] |
| 12345.67             | [   12345.670 m] |
| 12345678.9           | [12345678.900 m] |
| 123456789123         | [   1.235E+11 m] |
| 0.123                | [       0.123 m] |
| 0.1234567            | [       0.123 m] |
| 0.01234567           | [       0.012 m] |
| 0.001234567          | [       0.001 m] |
| 0.0001234567         | [   1.235E-04 m] |

Fixed-size formatting with engineering fallback

setFixedWithEngFallback() formats the number using setFixedFloat() if it fits the set width and will use setEngineering() when the resulting string does not fit the set width. This will enable aligned columns for vectors or matrices, but uses precision when space allows. Widths and decimals that can store all numbers are w.d = 9.1, 10.2, 11.3 etc. For width 9 and 1 decimal, the largest number in terms of size is -1.2E+300. The following methods control the output:

• setWidth(int) sets the total width of the number, including decimals, decimal point, exponent for scientific notation, minus sign, and grouping separators. The default width is 12.
• setDecimals(int) sets the number of decimals. The default number of decimals is 3.
• setGroupingSeparator(boolean) turns the grouping separator on or off. By default, grouping is set to false.
• setUpperE(boolean) sets sets the exponent symbol to E if true and to e if false. The default value is true.

| Number               | Formatted        |
| -------------------- | ---------------- |
| 12.3                 | [      12.300 m] |
| 12.34567             | [      12.346 m] |
| 12345.67             | [   12345.670 m] |
| 12345678.9           | [12345678.900 m] |
| 123456789123         | [ 123.457E+09 m] |
| 0.123                | [       0.123 m] |
| 0.1234567            | [       0.123 m] |
| 0.01234567           | [       0.012 m] |
| 0.001234567          | [       0.001 m] |
| 0.0001234567         | [   0.123E-03 m] |

Using a format string

setFormatString(String) allows for a user-defined format string for formatting numbers. It will ignore any settings of setWidth(), setDecimals(), setGroupingSeparator(), or setUpperE(). Suppose you want a left-aligned 12-wide, 6 significant digit format that falls back to scientific notation according to the Java format rules, you would specify: setFormatString("%-12.6G") (note that the .6 means 6 significant digits in the %g format, whereas it denotes the number of decimals in the %f format in Java). The formatting would look as follows:

| Number               | Formatted        |
| -------------------- | ---------------- |
| 12.3                 | [12.3000      m] |
| 12.34567             | [12.3457      m] |
| 12345.67             | [12345.7      m] |
| 12345678.9           | [1.23457E+07  m] |
| 123456789123         | [1.23457E+11  m] |
| 0.123                | [0.123000     m] |
| 0.1234567            | [0.123457     m] |
| 0.01234567           | [0.0123457    m] |
| 0.001234567          | [0.00123457   m] |
| 0.0001234567         | [0.000123457  m] |

Helper method overview

Helper methods for the formatting are:

• setWidth(width) sets the total fixed width of the output. If the output does not fit the width, it can be overruled. The default value is 12.
• setDecimals(decimals) sets the exact number of decimals for the output. The default value is 3.
• setMaxSigDigits(digits) sets the maximum number of significant digits for the variable length format, to avoid trailing .0001 or .9999. The default value is 10.
• setSciThreshold(int) indicates when a fraction with an absolute value less than 1 should be formatted using scientific notation. The default value is -3.
• setGroupingSeparator(boolean) sets the grouping separator (e.g., thousands separator) on or off. The default value is false.
• setUpperE(boolean) sets the exponent symbol to E if true and to e if false.

The usage of these settings by the different formats is as follows:

Format	Width	Decimals	MaxSigDigits	SciThreshold	Grouping	UpperE
VariableLength	Ignored	Ignored	Used	Used	Used	Used
FixedFloat	Used	Used	Ignored	Ignored	Used	Ignored
Scientific	Used	Used	Ignored	Ignored	Ignored	Used
Engineering	Used	Used	Ignored	Ignored	Ignored	Used
FixedWithSciFallback	Used	Used	Ignored	Ignored	Used for Fixed	Used for Sci
FixedWithEngFallback	Used	Used	Ignored	Ignored	Used for Fixed	Used for Eng
FormatString	Ignored	Ignored	Ignored	Ignored	Ignored	Ignored

Unit formatting settings

The following settings for formatting the unit can be used:

• setUnitPrefix(String) defines the string that will be used just before the unit. For a quantity, it will be the string between the number and the unit. For a matrix it will be the srtring between the end of the matrix and the unit. The default value is " ", a single space.
• setUnitPostfix(String) defines the string that will be used just after the unit. An example of using this setting is when the unit has to be placed between brackets. In that case, setUnitPrefix(" (").setUnitPostfix(")" can be used. The default value is an empty string.
• setDisplayUnit(Unit) will try to format the number(s) in line with the given unit, and attach this unit to the formatted output. Note that this influences the values of the numbers as well. The display unit of the object that is being formatted remains untouched. In case the given unit is not applicable for the object being formatted, its original display unit will be used. No exception is thrown in this case.
• setDisplayUnit(String) will try to parse the string into a unit, format the number(s) in line with that unit, and attach this unit to the formatted output. Note that this influences the values of the numbers as well. The display unit of the object that is being formatted remains untouched. In case the given string can not be correctly parsed, or the unit is not applicable for the object being formatted, its original display unit will be used. No exception is thrown in this case.
• setTextual() uses the textual representation as defined for the unit, so deg for an angle in degrees. The default is the display representation.
• setDisplay() uses the display representation as defined for the unit, so ° for an angle in degrees. This is the default setting.
• setTextual(boolean) switches to textual or display representation, depending on the value of the boolean argument.
• setSiUnits() switches the unit representation to its SI representation, so for energy, kgm²/s² instead of J. Note that the number(s) will be shown in SI units rather than in their regular display unit, so this setting influences the number display as well. The default is that the use of SI units is false. When the SI units setting is used, several other settings apply, which will be explained below.

SI unit formatting settings

When setSiUnits() is applied, the number(s) will be shown relative to the SI unit, and the unit will be shown consisting of integer powers of rad, sr, kg, m, s, A, K, mol, and cd in the numerator and denominator. For energy, for instance, kg.m^2/s^2 can be obtained as the output string for the unit. The following formatting options are available for formatting an SI string. Note that these settings can be changed as well when SI formatting is off, and the settings will have no effect in that case.

• setDivider(boolean) uses a divider for the negative powers when true and negative powers when false. Energy will use kgm2/s2 when the divider is set to true, and kgm2s-2 when divider is set to false. The default value is true for the divider.`
• setPowerPrefix(String) and setPowerPostfix(String) provide a prefix and postfix string for all powers. As an example, suppose we want to precede powers with a caret, the we use setPowerPrefix("^"). The energy unit will be formatted as kgm^2/s^2 after applying this setting. Another example is HTML formatting of the powers: setPowerPrefix("<sup>").setPowerPostfix("</sup>"). The energy unit will be formatted as kgm<sup>2</sup>/s<sup>2</sup> after applying this setting, and be displayed as kgm2/s2. The default values for the prefix and postfix are an empty string.
• setDotSeparator(String) sets a separator that will used between different SI units. Suppose that the dot separator is set to a center dot: setDotSeparator("\u22C5"), then the energy unit will be formated as kg⋅m/s2. The default value for the dot separator is the empty string.

The settings can be combined to format quantities, e.g., as a HTML string:

var q = Energy.of(1.23, "kJ");
var s = q.format(QuantityFormat.instance().setSiUnits().setDotSeparator("⋅")
    .setPowerPrefix("<sup>").setPowerPostfix("</sup>").setDivider(false));
System.out.println(s);

This will output: 1230 kg&sdot;m<sup>2</sup>&sdot;s<sup>-2</sup>, which will be rendered in a browser as: 1230 kg⋅m2⋅s-2.

Locale formatting

The locale for formatting a quantity-related object can be changed, without changing the locale for the entire program and without explicitly setting the locale in the code:

• setLocale(Locale) changes the locale for this format string only.

The following example shows the effect of using a locale setting:

Locale.setDefault(Locale.GERMANY);
Length l = Length.of(12.43, "mi");
String sDE = l.format(QuantityFormat.instance().setDisplayUnit("m").setGroupingSeparator(true));
System.out.println(sDE);
String sUS = l.format(QuantityFormat.instance().setLocale(Locale.US)
    .setDisplayUnit("m").setGroupingSeparator(true));
System.out.println(sUS);
Locale.setDefault(Locale.US);

which outputs:

20.004,14592 m
20,004.14592 m

Reference formatting (absolute)

For quantities, vectors, matrices and tables that use an absolute quantity, the reference point that is used can be formatted. Note that including the reference point is by default set to false. The following methods can be used for formatting the reference:

• setPrintReference() turns reference printing on.
• setNoReference() turns reference printing off. This is the default setting.
• setPrintReference(boolean) turns reference printing on or off, depending on the value of the boolean.
• setReferencePrefix(String) sets the prefix for the reference to the provided string. By default, the reference prefix is set to " (".
• setReferencePostfix(String) sets the postfix for the reference to the provided string. By default, the reference postfix is set to ")".

As an example, suppose we want to show that the absolute temperatures are relative to 0 °C, and not to 0 kelvin, by using a string (relative to 0 °C) instead of the normal reference string, which will be (CELSIUS) when turned on:

Temperature t = new Temperature(0.0, Temperature.Unit.degF);
System.out.println(t.relativeTo(Temperature.Reference.CELSIUS).format(
    QuantityFormat.instance().setDisplayUnit("K").setPrintReference()
        .setReferencePrefix(" (relative to 0 ")));

outputs:

-17.77777777777777 K (relative to 0 CELSIUS)

Quantity formatting

Quantity formatting is done using the QuantityFormat class. Since QuantityFormat extends Format, all above settings for formatting the number, unit, locale, and absolute references can be used as well.

The QuantityFormat class has one additional setting, which is the formatting using SI prefixes. Using SI prefixes means that 1200 J will be displayed as 1.2 kJ, and 1.34⋅10^-6 m will be displayed as 1.34 µm.

• setAutoSiPrefix() turns on the scaling of SI prefixes. By default, any 10th power between -30 and +32 (inclusive) will be translated to the nearest SI unit. So, 1200 m will be turned into 1.2 km, and 1.45E-9 s will be transformed into 1.45 ns.
• setAutoSiPrefix(minExponent, maxExponent) turns on the scaling of SI prefixes if the 10th power is between minExponent and maxExponent, inclusive. This can be used to prevent transformations that are not often used. For length, for instance, units above the km are not often used -- we typically do not use Mm, Gm, etc. But µm, nm, pm, are often used. By calling setAutoSiPrefix(-30, 3), the intended prefixes are used. 1,000,000 m will remain to be formatted in meters in this case.
• setAutoSiPrefix(minSiPrefixStr, maxSiPrefixStr) turns on the scaling of SI prefixes when the exponent of the unit lies between the exponent of minSiPrefixStr and the exponent of maxSiPrefixStr, inclusive. This can be used to prevent transformations that are not often used. For length, for instance, we typically do not use Mm, Gm, etc. But µm, nm, pm, are often used, whereas prefixes below picometer are rarely used as well. By calling setAutoSiPrefix("p", "k"), the intended prefixes are used. 1,000,000 m will remain to be formatted in meters in this case.
• setAllowExponents12(boolean) indicates whether the SI prefixes c, d, da and h can also be used or not. By default this setting is false. A length of 0.1 m will be formatted as 1 dm when this setting is turned on, and when the minimum and maximum exponent allow the d SI prefix to be used.
• setAllowExponents12() turns on that the SI prefixes c, d, da and h can also be used. A weight of 1E-5 kg will be formatted as 1 cg when this setting is turned on, and when the minimum and maximum exponent allow the c SI prefix to be used.

Note that the unit will automatically be translated into the SI unit to make this work. In other words, an energy in MeV is automatically translated into J if automatic SI prefixes are turned on:

Energy energy = new Energy(13.34, "GeV");
System.out.println(energy.format(QuantityFormat.instance().setAutoSiPrefix()));

prints:

2.1373036297559995 nJ

Note that the setAutoSiPrefix() also works for the kg, which already starts with a 10³ power as the default unit. The scaling in setAutoSiPrefix(minExponent, maxExponent) is treated relative to the g, so if you want to print kg, but no Mg, and you do not want to go below the pg, use setAutoSiPrefix(-12, 3) or setAutoSiPrefix("p", "k"). The scaling also works for 'per' units, such as 'per mol', 'per kg', etc. If you want to use the /m for LinearObjectDensity between the /nm and /km, use setAutoSiPrefix(-9, 3) or setAutoSiPrefix("n", "k").

Vector formatting

Vector formatting is done using the VectorFormat.Col class that formats a (row or column) vector as a column using one line per cell, or the VectorFormat.Row class that formats a (row or column) vector as a row, using one line. Since VectorFormat extends Format, all above settings for formatting the number, unit, locale, and absolute references can be used as well.

Note that the VectorFormat.Col and VectorFormat.Row class can both be used for row vectors and column vectors. This means that a row vector can be formatted as a column vector and vice versa. It's just formatting, and the vector itself is not and does not need to be transposed to format it in the other 'direction'.

For formatting vectors, the following methods are available:

• setStartSymbol(String) sets the start symbol of the vector itself. For all vectors, [ is default.
• setEndSymbol(String) sets the end symbol of the vector itself. For all vectors, ] is default.
• setCellSeparator(String) sets the separator between cells in the vector. For row formatting, , is default, whereas "\n" is default for column formatting.
• setVectorPrefix(String) sets a prefix to use before the start symbol. It is an empty string by default, but can be used to indicate that a vector that is formatted as a row vector is actually a column vector by setting the prefix to Col.

The default values for vector Row and Col formatting are as follows:

Format	Row value	Col value
formatMode	VARIABLE_LENGTH	FIXED_WITH_SCI_FALLBACK
startSymbol	"["	"[\n"
endSymbol	"]"	"]"
separatorSymbol	", "	"\n"
vectorPrefix	""	""

Matrix formatting

Matrix formatting is done using the MatrixFormat class. Since MatrixFormat extends Format, all above settings for formatting the number, unit, locale, and absolute references can be used as well.

By default, matrices are formatted in such a way that they can be recognized as a matrix:

|     11.000      14.000      17.000      20.000 |
|     23.000      30.000      37.000      44.000 |
|     35.000      46.000      57.000      68.000 |
|     47.000      62.000      77.000      92.000 | m2

For formatting matrices, the following methods are available:

• setFirstRowStart(String) sets the start symbol of the left bracket on the first row. The default is |.
• setFirstRowEnd(String) sets the end symbol of the right bracket on the first row. The default is |\n.
• setMiddleRowStart(String) sets the start symbol of the left bracket for middle rows. The default is |.
• setMiddleRowEnd(String) sets the end symbol of the right bracket for middle rows. The default is |\n.
• setLastRowStart(String) sets the start symbol of the left bracket on the last row. The default is |.
• setLastRowEnd(String) sets the end symbol of the right bracket on the last row. The default is |.
• setCellSeparator(String) sets the separator between cells in the matrix rows. It is a single space by default.
• setMatrixPrefix(String) sets a prefix to use before the first matrix row and before the row start symbol. It is an empty string by default.
• setMatrixPostfix(String) sets a postfix to use after the last matrix row and after the row end symbol, but before the unit. It is an empty string by default.

QuantityTable formatting

Quantity table formatting is done using the TableFormat class. Since TableFormat extends Format, all above settings for formatting the number, unit, locale, and absolute references can be used as well.

For formatting tables, the following methods are available:

• setFirstRowStart(String) sets the start symbol of the table on the first row. The default is |.
• setFirstRowEnd(String) sets the end symbol of the table on the first row. The default is |\n.
• setMiddleRowStart(String) sets the start symbol of the table for middle rows. The default is |.
• setMiddleRowEnd(String) sets the end symbol of the table for middle rows. The default is |\n.
• setLastRowStart(String) sets the start symbol of the table on the last row. The default is |.
• setLastRowEnd(String) sets the end symbol of the table on the last row. The default is |.
• setCellSeparator(String) sets the separator between cells in the table rows. It is a single space by default.
• setTablePrefix(String) sets a prefix to use before the first table row and before the row start symbol. It is an empty string by default.
• setTablePostfix(String) sets a postfix to use after the last table row and after the row end symbol, but before the unit. It is an empty string by default.

Reusing a Format

A format can be stored and reused. When you have a format you want to reuse for multiple format() statements, you can store it in a variable. Suppose you want a format to print column vectors as row vectors, but start the vector with Col to indicate it actually a row vector. Similarly, you want to format row vectors starting with the text Row. Then, you can store and use the formats as follows:

public static final VectorFormat.Row COLFORMAT = VectorFormat.Row.instance().setVectorPrefix("Col");
public static final VectorFormat.Row ROWFORMAT = VectorFormat.Row.instance().setVectorPrefix("Row");

public void test()
{
    var mvc = Vector3.Col.of(1, 2, 3, Mass.Unit.kg);
    var mvr = Vector3.Row.of(4, 5, 6, Mass.Unit.kg);
    System.out.println("mvc = " + mvc.format(COLFORMAT));
    System.out.println("mvr = " + mvr.format(ROWFORMAT));
}

which outputs:

mvc = Col[1, 2, 3] kg
mvr = Row[4, 5, 6] kg

Changing default values

If you want to change the default values for all subsequent calls of one of the formatters (QuantityFormat, VectorFormat.Row, VectorFormat.Col, MatrixFormat or TableFormat), you can use the static method changeDefaults() on the Format, and then set the options to your liking. Suppose you want to change the format of column vectors to always print as row vectors, but start the vector with C to indicate it actually a row vector. Similarly, you always want to format row vectors starting with the text R. Then, you can set the default formats as follows:

public static void main(String[] args)
{
    VectorFormat.Col.changeDefaults().setVectorPrefix("C").setCellSeparator(", ")
        .setStartSymbol("[").setVariableLength();
    VectorFormat.Row.changeDefaults().setVectorPrefix("R");
    test();
}

private static void test()
{
    var mvc = Vector3.Col.of(1, 2, 3, Mass.Unit.kg);
    var mvr = Vector3.Row.of(4, 5, 6, Mass.Unit.kg);
    System.out.println("mvc = " + mvc);
    System.out.println("mvr = " + mvr);
}

which outputs:

mvc = C[1, 2, 3] kg
mvr = R[4, 5, 6] kg

Note that we had to change the default column formatting with newlines to a version without newlines. Also, the value formatting that by default is fixed with scientific fallback was changed to variable length.

Technical implementation

The format settings are stored in a FormatContext. FormatContext contains the settings for value, unit, locale and reference. The class is extended into a separate FormatContext classes for quantity (QuantityFormatContext), vector (VectorFormatContext), matrix (MatrixFormatContext), and quantity table (TableFormatContext). Each FormatContext is filled with the default values of the different settings. The diagram below shows the relationships between the Format, FormatContext and Formatter for quantity and matrix.

The Format is accessible to the user to set the preferences for formatting. These are stored in an instance of FormatContext. The Formatter uses the FormatContext to decide how to format the object. The abstract class Formatter takes care of formatting numbers, units and reference points, as well as setting the correct locale. Since, e.g., QuantityFormatter extends the Formatter, these functions are available to the QuantityFormatter as well.

Below, the inner working of QuantityFormatter is explained. The other formatters work in a similar way. The QuantityFormatter has a field DEFAULT, which is an instance of the context, and contains the current default values, which can have been changed by the user:

private static QuantityFormatContext DEFAULT = new QuantityFormatContext();

When calling QuantityFormat.instance(), a clone of this DEFAULT object instance is returned (that is why FormatContext implements Cloneable). The set operations for numbers, units, reference points, locale, and quantity change field values in the clone of the context object instance. This object is subsequently used by the QuantityFormatter object when building a string that is the result of the format operation.

Each Format class has its own DEFAULT object (and VectorFormat has two, one for Row and one for Col). Default settings for each Format object can differ: where QuantityFormat and VectorFormat.Row format the value with a variable length, VectorFormat.Col, MatrixFormat and TableFormat have a fixed length for the value to align the values. This is done with a static initializer:

private static TableFormatContext DEFAULT = makeDefault();

private static TableFormatContext makeDefault()
{
    var tfc = new TableFormatContext();
    tfc.formatMode = FloatFormatMode.FIXED_WITH_SCI_FALLBACK;
    return tfc;
}

As was shown above, the default settings can be changed. This is done by giving access to the DEFAULT object itself. Any set method now changes the values of the DEFAULT object. When this object is cloned in the next Format.instance() call, the changed values are used. The FormatContext classes themselves contains the 'default' default values, which can be reset using the method Format.resetDefaults(). The resetDefaults() method restores the original values into the DEFAULT object. For the TableFormat, this looks as follows:

public static TableFormat instance()
{
    return new TableFormat(DEFAULT.clone());
}

public static TableFormat changeDefaults()
{
    return new TableFormat(DEFAULT);
}

Note that the VectorFormat class has two inner classes, VectorFormat.Col and VectorFormat.Row. Each of these inner classes has its own DEFAULT object, and its own makeDefaults() method. This means that defaults for row vector formatting and column vector formatting can be maintained and used independent of each other.
