Vector of quantities

Introduction

Vectors and Matrices are one-dimensional and two-dimensional mathematical data containers for Quantity values, where each instance of a Vector or Matrix contains values of one specific quantity. A Vector or Matrix has a displayUnit for the entire vector or matrix. Internally, vectors and matrices store all values in their SI or BASE unit, just like the Quantity.

Larger Vectors and Matrices are implemented in four different ways: Sparse or Dense data storage, combined with Double or Float precision, which gives four combinations. Sparse storage should be used for vectors or matrices that contain many zero values. Dense data storage would, in that case, store all the zeros, whereas in a sparse storage only the numbers unequal to zero are stored, together with an index. As the index adds some overhead, sparse storage only makes sense when the number of zeros is over 50% of the number of entries.

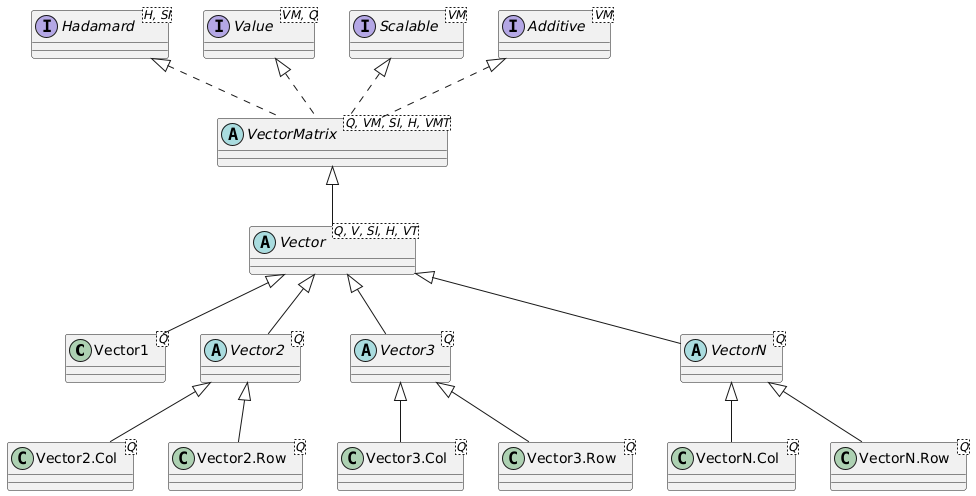

Vector types

Vectors can be defined as row vectors or as column vectors. The difference is especially important for vector-vector multiplications and matrix-vector multiplications. Row and Col are defined as inner classes of the corresponding vectors. Several implementations of vectors exist, which are shown in the UML class diagram below:

The generic type of Vector of any size is the VectorN class. This vector can use sparse or dense storage, and be populated with single-precision float values or double precision double values. For efficiency reasons, since the VectorN carries some overhead for the flexible data storage, separate classes are defined for Vector1 (no distinction between row and column version), and for Vector2 and Vector3, both with a Row and Col extension.

Vector operations

A Vector implements the Hadamard interface for entry-by-entry operations. These include:

• invertEntries(): Invert the vector on an entry-by-entry basis (1/value), where the unit will also be inverted. The inversion of a Duration vector will result in a vector of the same type (row/column) and size, with a unit of 1/s, corresponding to a Frequency.
• multiplyEntries(Vector other): Multiply the entries of this vector on an entry-by-entry basis with those of another vector of the same type and size (but generally containing values of another quantity).
• divideEntries(Vector other): Divide the entries of this vector on an entry-by-entry basis by those of another vector of the same type and size (but generally containing values of another quantity).
• multiplyEntries(Quantity<?, ?> quantity): Multiply the entries of this vector on an entry-by-entry basis with the provided quantity.
• divideEntries(Quantity<?, ?> quantity): Divide the entries of this vector on an entry-by-entry basis by the provided quantity.

All Hadamard operations result in a new instance of the Vector with a new unit, but of the same type (Vector2.Col, Vector3.Row, VectorN.Col, etc.) and with the same size.

The result of a Hadamard operation on, e.g. a VectorN.Row<Speed> will typically be a VectorN.Row<SIQuantity> since the inverse operation, multiplication or division will result in a Vector with a unit that is unknown beforehand and cannot be determined by the compiler. In the above example of invertEntries for a Duration vector, the resulting vector can be transformed into a proper VectorN.Row<Frequency> vector using the as(Frequency.Unit.Hz) method.

If a VectorN is internally of a size congruent with a specific vector type, e.g. Vector2.Row or Vector3.Col, it can be obtained as such using methods such as asVector2Row() or asVector3Col(). Many such methods exist to carry out a transformation between vectors and matrices of various sizes. These methods will check the consistency of the vector size with the desired vector type at runtime. All vectors, irrespective of their size, can be transformed to a QuantityTable using the asQuantityTable() method, and to a MatrixNxM with the asMatrixNxM() method.

If vector-vector multiplication results in a special matrix type, for example multiplying a Vector3.Col by a Vector3.Row resulting in a 3x3 matrix, the resulting MatrixNxM from the calculation can be obtained as a Matrix3x3 using the method asMatrix3x3(). This allows it, for example, to be added to another Matrix3x3.

The Vector class implements the transpose() operation, which transforms a row vector into a column vector and vice versa. The resulting vector will have the same outer class type as the original; the transpose() method on a Vector2.Row will result in a Vector2.Col.

Furthermore, a vector is Additive, which means that vectors of the same type, size, and quantity can be added to and subtracted from each other. It is also possible to add or subtract a fixed Quantity of the correct type to/from the vector. Vectors also implement the Scalable interface, which exposes the scaleBy(double factor) and divideBy(double factor) methods. Since vectors are immutable, all these operations result in a new instance of a vector.

The generic methods of a Vector are:

• int rows() returns the number of rows of the vector.
• int cols() returns the number of columns of the vector.
• int size() returns the size of the vector; the number of rows for a column vector, or the number of columns for a row vector.
• boolean isColumnVector() returns whether this vector is a column vector.
• boolean isRowVector() returns whether this vector is a row vector. Note that a Vector1 is both a column vector and and row vector.
• Iterator<Q> iterator() returns a Quantity iterator over the entries of the vector.
• getDisplayUnit() returns the display unit of the entire Vector.
• setDisplayUnit(unit) sets a new display unit for the entire Vector based on a strongly typed unit.
• setDisplayUnit(string) sets a new display unit for the entire Vector based on a String representation of the unit.
• boolean isRelative() returns whether the underlying Quantity is relative or not. Note that Vector only stores relative quantities.
• boolean isAbsolute() returns whether the underlying Quantity is absolute or not. Note that Vector only stores relative quantities.
• transpose() returns a new Vector where the rows and columns are swapped.
• v1.add(v2) returns a new Vector where all entries of v2 have been added to the corresponding entries of v1. The displayUnit is taken from v1. The number of rows and columns of v1 and v2 have to be equal, of course.
• v1.subtract(v2) returns a new Vector where all entries of v2 have been subtracted from the corresponding entries of v1. The displayUnit is taken from v1. The number of rows and columns of v1 and v2 have to be equal, of course.
• v.scaleBy(double factor) returns a new Vector where all entries of v have been scaled by factor. The displayUnit remains unchanged.
• v.divideBy(double factor) returns a new Vector where all entries of v have been scaled by 1.0/factor. The displayUnit remains unchanged.

Obtaining values of vector entries

Several methods exist to get access to the entries of a Vector. When single entries are retrieved, two versions of the methods exist: a version where the index is 0-based, and a version where the index is 1-based. The 1-based methods have a name that starts with m for matrix, since the entries of a vector start with v₁ and not v₀ and the entries of a matrix start with m₁₁, and not with m₀₀. So, there is an si(index) method where index ranges from 0 to vector.size()-1, and an msi(mIndex) method where mIndex ranges from 1 up to and including vector.size().

Quantity-based methods return a value Q that is consistent with the quantity stored in the Vector. Suppose v is a Vector3.Row<Mass>. The result of the operation v.mget(1) will then be a strongly typed Mass quantity. The letter Q in the methods below indicates that strongly typed quantity such as Mass.

A Vector contains the following methods to obtain its values:

• double[] getSiArray() returns a safe copy of the values of the vector in SI-units as a double[] array with the same length as the vector.
• Q[] getScalarArray() returns a 1-dimensional strongly typed quantity array that represents the vector. The quantities in the array will all have the same displayUnit as the original Vector.
• double si(int index) returns the SI-value of the entry at the 0-based index.
• double msi(int mIndex) returns the SI-value of the entry at the 1-based mIndex.
• Q get(int index) returns the quantity representation of the entry at the 0-based index. The returned Quantity will have the same displayUnit as the original Vector.
• Q mget(int mIndex) returns the quantity representation of the entry at the 1-based mIndex. The returned Quantity will have the same displayUnit as the original Vector.

Mathematical operations

A Vector implements several mathematical operations. The most important ones are:

• Q mean() returns the mean quantity value of the entries of the Vector as a strongly typed Quantity.
• Q min() returns the minimum quantity value of the entries of the Vector as a strongly typed Quantity.
• Q max() returns the maximum quantity value of the entries of the Vector as a strongly typed Quantity.
• Q median() returns the median quantity value of the entries of the Vector as a strongly typed Quantity. The median value is the value of the middle entry when all entries have been sorted on their SI-values. When the size of the vector is even, the average of the two values that together make up the middle is returned.
• Q sum() returns the sum of the entries of the Vector as a strongly typed Quantity.
• V negate() returns a Vector of the same type and size where all entries \(x_i\) have been set to \(-x_i\).
• V abs() returns a Vector of the same type and size where all entries \(x_i\) have been set to \(|x_i|\).
• Q normL1() returns the L1-norm of the vector's entries, expressed as a quantity. The L1-norm is defined as \(L1=|x_1|+|x_2|+...+ |x_n|\).
• Q normL2() returns the L2-norm of the vector's entries, expressed as a quantity. The L2-norm is defined as \(L2=\sqrt(x_1^2+x_2^2+...+x_n^2)\).
• Q normLp(int p) returns the L_p-norm of the vector's entries, expressed as a quantity. The L_p-norm is defined as \(L_p={(x_1^p+x_2^p+...+x_n^p)}^{(1/p)}\)
• Q normLinf() returns the L_∞-norm of this vector's entries, expressed as a quantity. The L_∞-norm is defined as \(L_{\infty}=max(|x_1|,|x_2|,...,|x_n|)\).
• Q norm() returns the default norm for the vector's entries. The default norm is defined as the L2-norm.
• double nonZeroCount() and double nnz() both return the number of non-zero entries in the vector.

Vector definition and storage

Creating a Vector1

For a Vector1, there is no distinction between a row and column vector. Several methods exist to instantiate a Vector1:

• new Vector1<Q>(double xSi, Unit displayUnit)
  creates a Vector1 based on an SI-value for the quantity with a displayUnit.
• Vector1.of(double xInUnit, Unit unit)
  creates a Vector1 based on a value expressed in the given unit, e.g., 60.0, Speed.Unit.km_h.
• Vector1.of(double[] dataInUnit, Unit unit)
  creates a Vector1 based on an array of length 1 with values expressed in the given unit.
• Vector1.ofSi(double xSi, Unit displayUnit)
  creates a Vector1 based on an SI-value for a quantity with a displayUnit.
• Vector1.ofSi(double[] dataSi, Unit displayUnit)
  creates a Vector1 based on an array of length 1 with SI-values for a quantity with a displayUnit.
• Vector1.of(Q x)
  creates a Vector1 based on a provided quantity.
• Vector1.of(Q[] data)
  creates a Vector1 based on an array of length 1 containing a provided quantity.

Creating a Vector2

For a Vector2, a row vector Vector2.Row and a column vector Vector2.Col exist. Several methods exist to instantiate a Vector2. Below, the instantiation methods are given for Vector2.Col. The instantiation methods for a Vector2.Row are analogous.

• new Vector2.Col<Q>(double xSi, double ySi, Unit displayUnit)
  creates a Vector2.Col based on two SI-values for the quantities with a displayUnit.
• Vector2.Col.of(double xInUnit, double yInUnit, Unit unit)
  creates a Vector2.Col based on two values expressed in the given unit.
• Vector2.Col.of(double[] dataInUnit, Unit unit)
  creates a Vector2.Col based on an array of length 2 with values expressed in the given unit.
• Vector2.Col.ofSi(double xSi, double ySi, Unit displayUnit)
  creates a Vector2.Col based on two SI-values for the quantities with a displayUnit.
• Vector2.Col.ofSi(double[] dataSi, Unit displayUnit)
  creates a Vector2.Col based on an array of length 2 with SI-values for the quantities with a displayUnit.
• Vector2.Col.of(Q x, Q y)
  creates a Vector2.Col containing the two provided quantities.
• Vector2.Col.of(Q[] data)
  creates a Vector2.Col based on an array of length 2 containing the provided quantities.

Creating a Vector3

For a Vector3, a row vector Vector3.Row and a column vector Vector3.Col exist. Several methods exist to instantiate a Vector3. Below, the instantiation methods are given for Vector3.Col. The instantiation methods for a Vector3.Row are analogous.

• new Vector3.Col<Q>(double xSi, double ySi, double zSi, Unit displayUnit)
  creates a Vector3.Col based on three SI-values for the quantities with a displayUnit.
• Vector3.Col.of(double xInUnit, double yInUnit, double zInUnit, Unit unit)
  creates a Vector3.Col based on three values expressed in the given unit.
• Vector3.Col.of(double[] dataInUnit, Unit unit)
  creates a Vector3.Col based on an array of length 3 with values expressed in the given unit.
• Vector3.Col.ofSi(double xSi, double ySi, double zSi, Unit displayUnit)
  creates a Vector3.Col based on three SI-values for the quantities with a displayUnit.
• Vector3.Col.ofSi(double[] dataSi, Unit displayUnit)
  creates a Vector3.Col based on an array of length 3 with SI-values for the quantities with a displayUnit.
• Vector3.Col.of(Q x, Q y, Q z)
  creates a Vector3.Col containing the three provided quantities.
• Vector3.Col.of(Q[] data)
  creates a Vector3.Col based on an array of length 3 containing the provided quantities.

Creating a VectorN

The VectorN class is used for storing row and column vectors of any length. Data can be stored as single-precision float variable, or as double-preciding double values. Both dense (store every number) and sparse (only store non-zero values) is possible. For a VectorN, a row vector subclass VectorN.Row and a column vector subclass VectorN.Col exist. Several methods exist to instantiate a VectorN. Below, the instantiation methods are given for VectorN.Col. The instantiation methods for a VectorN.Row are analogous.

• new VectorN.Col<Q>(DataGridSi dataSi, Unit displayUnit)
  creates a VectorN.Col based on a DataGridSi storage object. More information can be found in the storage section.
• VectorN.Col.of(DataGridSi dataSi, Unit displayUnit)
  creates a VectorN.Col based on a DataGridSi storage object. More information can be found in the storage section.
• VectorN.Col.of(double[] dataInUnit, Unit unit)
  creates a VectorN.Col based on an array with values expressed in the given unit. The vector will have the same number of elements as the array.
• VectorN.Col.ofSi(double[] dataSi, Unit displayUnit)
  creates a VectorN.Col based on an array with SI-values for the quantities. The vector will have the same number of elements as the array.
• VectorN.Col.of(Q[] data)
  creates a VectorN.Col based on an array with quantities. The vector will have the same number of elements as the array.
• VectorN.Col.of(List<Q> data)
  creates a VectorN.Col based on a list with quantities. The vector will have the same number of elements as the list.

Example for Vector instantiation and usage

The example below shows the instantiation and usage of a column vector with 5 entries VectorN.Col:

VectorN.Col<Length> lv1 = VectorN.Col.of(
    new double[] {10, 20.0, 60, 120.0, 400.0}, Length.Unit.km);
Duration duration = Duration.of(2.0, "h");
VectorN.Col<Speed> sv1 =
    lv1.divideEntries(duration).as(Speed.Unit.km_h);
System.out.println("Length: " + lv1);
System.out.println("Speed : " + sv1);

Executing the code results in:

Length: Col[10.0, 20.0, 60.0, 120.0, 400.0] km
Speed : Col[5.0, 10.0, 30.0, 60.0, 200.0] km/h

The output shows that the vectors are column vectors, although they are printed row-wise.
