Vector with quantities

Introduction

Vectors and Matrices are implemented in four different ways: Sparse or Dense data storage, combined with Double or Float precision, which gives four combinations. Sparse storage should be used for vectors or matrices that contain many zero values. Dense data storage would, in that case, store all the zeroes, whereas in a sparse storage only the numbers unequal to zero are stored, together with an index. As the index adds some overhead, sparse storage makes only sense when the number of zeroes is over 50% of the number of cells.

Vector types

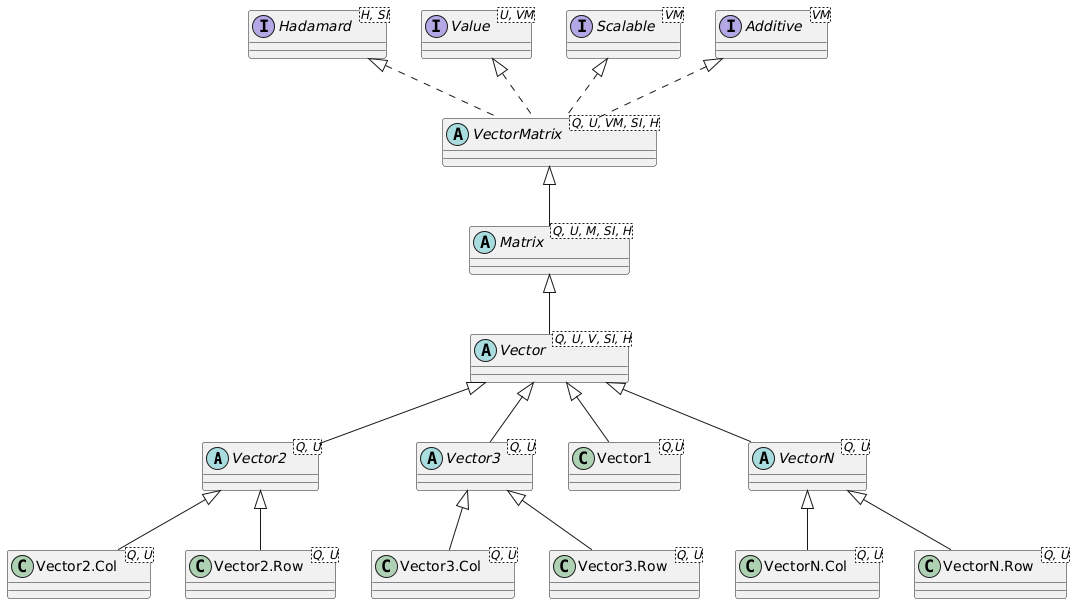

Vectors can be defined as row vectors or as column vectors. The difference is especially important for vector-vector multiplications and matrix-vector multiplications. Row and Col are defined as inner classes of the corresponding vectors. Several implementations of vectors exist, which are shown in the UML class diagram below:

As can be seen, the abstract class Vector extends the abstract class Matrix, where a row vector is a matrix with dimensions 1 x N, and a column vector is a matrix with dimensions N x 1. The fact that a vector is defined as a special type of matrix helps with matrix-vector multiplication.

The generic type of Vector of any size is the VectorN. This vector can use sparse or dense storage, and be populated with single-precision float values or double precision double values. For efficiency reasons, since the VectorN carries quite some overhead for the flexible data storage, separate classes are defined for Vector1 (no distinction between row and column version), Vector2 and Vector3, both with a Row and Col extension.

Vector operations

A Vector implements the Hadamard interface for element-wise operations. These include:

  • invertElements(): Invert the vector on an element-by-element basis (1/value), where the unit will also be inverted. The inversion of a Duration vector will result in a vector of the same type (row/column) and size, with a unit if 1/s, corresponding to a Frequency.
  • multiplyElements(Vector other): Multiply the elements of this vector on an element-by-element basis with those of another vector of the same type and size (but possibly representing another quantity).
  • divideElements(Vector other): Divide the elements of this vector on an element-by-element basis by those of another vector of the same type and size (but possibly representing another quantity).
  • multiplyElements(Quantity<?, ?> quantity): Multiply the elements of this vector on an element-by-element basis with the provided quantity.
  • divideElements(Quantity<?, ?> quantity): Divide the elements of this vector on an element-by-element basis by those the provided quantity.

The result of a Hadamard operation on, e.g. a VectorN.Row<Speed, Speed.Unit> will typically be a VectorN.Row<SIQuantity, SIUnit> since the inverse operation, multiplication or division will result in a Vector with a unit that is unknown on beforehand and cannot be determined by the compiler. In the above example of invertElements for a Duration vector, the resulting vector can be transformed into a proper VectorN.Row<Frequency, Frequency.Unit> vector using the as(Frequency.Unit.Hz) method.

Furthermore, a vector is Additive, which means that vectors of the same type, size, and quantity can be added to and subtracted from each other. Vectors also implement the Scalable interface, which exposes the scaleBy(double factor) and divideBy(double factor) methods.

Example vector definition and storage

The example below shows the instantiation and usage of a column vector with 5 elements VectorN.Col:

VectorN.Col<Length, Length.Unit> lv1 = VectorN.Col.of(
    new double[] {10, 20.0, 60, 120.0, 400.0}, Length.Unit.km);
Duration duration = Duration.of(2.0, "h");
VectorN.Col<Speed, Speed.Unit> sv1 =
    lv1.divideElements(duration).as(Speed.Unit.km_h);
System.out.println("Length: " + lv1);
System.out.println("Speed : " + sv1);

Executing the code results in:

Length: Col[10.0, 20.0, 60.0, 120.0, 400.0] km
Speed : Col[5.0, 10.0, 30.0, 60.0, 200.0] km/h

The output shows that the vectors are column vectors, although they are printed row-wise.
