Matrix with quantities

Vectors and Matrices are implemented in four different ways: Sparse or Dense data storage, combined with Double or Float precision, which gives four combinations. Sparse storage should be used for vectors or matrices that contain many zero values. Dense data storage would, in that case, store all the zeroes, whereas in a sparse storage only the numbers unequal to zero are stored, together with an index. As the index adds some overhead, sparse storage makes only sense when the number of zeroes is over 50% of the number of cells.

Matrix types

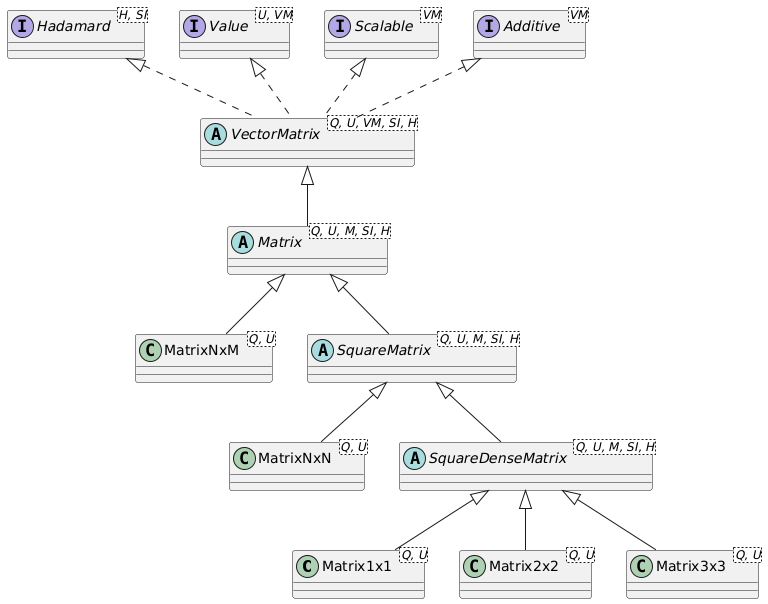

Several implementations of matrices exist, which are shown in the UML class diagram below:

As can be seen, the abstract class Matrix extends the abstract class VectorMatrix, which contains numerous methods for methods that are common to matrices, vectors and tables. Matrix multiplication is explicitly missing in the VectorMatrix class, since QuantityTable that extends VectorMatrix should not include matrix multiplication. The Matrix class adds matrix multiplication. Square matrices as defined in the SquareMatrix abstract class contain additional methods that only make sense for square matrices, such as determinant(), trace(), inverse(), and adjugate().

The generic type of Matrix of any size is the MatrixNxM. This matrix can use sparse or dense storage, and be populated with single-precision float values or double precision double values.

The generic type of SquareMatrix of any size is MatrixNxN. This matrix can also use sparse or dense storage, and store float values or double values. For efficiency reasons, since the MatrixNxN carries quite some overhead for the flexible data storage, separate classes are defined for Matrix1x1, Matrix2x2, and Matrix3x3. Data inside these matrices is stored in a dense double[] array that uses row-major indexing.

Matrix operations

A Matrix implements the Hadamard interface for element-wise operations. These include:

  • invertElements(): Invert the matrix on an element-by-element basis (1/value), where the unit will also be inverted. The inversion of a Duration matrix will result in a matrix of the same type (1x1, 2x2, 3x3, NxN, NxM) and size (number of rows and columns), with a unit if 1/s, corresponding to a Frequency matrix.
  • multiplyElements(Matrix other): Multiply the elements of this matrix on an element-by-element basis with those of another matrix of the same type and size (but possibly representing another quantity).
  • divideElements(Matrix other): Divide the elements of this matrix on an element-by-element basis by those of another matrix of the same type and size (but possibly representing another quantity).
  • multiplyElements(Quantity<?, ?> quantity): Multiply the elements of this matrix on an element-by-element basis with the provided quantity.
  • divideElements(Quantity<?, ?> quantity): Divide the elements of this matrix on an element-by-element basis by those the provided quantity.

The result of a Hadamard operation on, e.g. a MatrixNxM<Speed, Speed.Unit> will typically be a MatrixNxM<SIQuantity, SIUnit> since the inverse operation, multiplication or division will result in a Matrix with a unit that is unknown on beforehand and cannot be determined by the compiler. In the above example of invertElements for a Duration matrix, the resulting matrix can be transformed into a proper MatrixNxM<Frequency, Frequency.Unit> matrix using the as(Frequency.Unit.Hz) method.

Furthermore, a matrix is Additive, which means that matrices of the same type, size, and quantity can be added to and subtracted from each other. Matrices also implement the Scalable interface, which exposes the scaleBy(double factor) and divideBy(double factor) methods.

Many of the matrix operations are delegated to the mathematics utility classes ArrayMath and MatrixMath, which can be found in the org.djunits.util package.

Example matrix definition and usage

The example below shows the instantiation and usage of a MatrixNxM:

MatrixNxM<Length, Length.Unit> lm4x2 =
    MatrixNxM.of(new double[][] {{1, 2, 3, 4}, {5, 6, 7, 8}}, Length.Unit.m);
MatrixNxM<Length, Length.Unit> lm2x4 =
    MatrixNxM.of(new double[][] {{1, 2}, {3, 4}, {5, 6}, {7, 8}}, Length.Unit.m);

var mult44 = lm4x2.multiply(lm2x4).as(Area.Unit.m2);
System.out.println("\nMatrix1:\n" + lm4x2);
System.out.println("Matrix2:\n" + lm2x4);
System.out.println("Multiplication:\n" + mult44);

Matrix2x2<Area, Area.Unit> mult22 =
    lm4x2.multiply(lm2x4).asMatrix2x2().as(Area.Unit.a);
System.out.println("\nMatrix1:\n" + lm2x4);
System.out.println("Matrix2:\n" + lm4x2);
System.out.println("Multiplication:\n" + mult22);

The above code prints the following:

Matrix1:
[1.00000000, 2.00000000, 3.00000000, 4.00000000
 5.00000000, 6.00000000, 7.00000000, 8.00000000] m
Matrix2:
[1.00000000, 2.00000000
 3.00000000, 4.00000000
 5.00000000, 6.00000000
 7.00000000, 8.00000000] m
Multiplication:
[50.0000000, 60.0000000
 114.000000, 140.000000] m2

Matrix1:
[1.00000000, 2.00000000
 3.00000000, 4.00000000
 5.00000000, 6.00000000
 7.00000000, 8.00000000] m
Matrix2:
[1.00000000, 2.00000000, 3.00000000, 4.00000000
 5.00000000, 6.00000000, 7.00000000, 8.00000000] m
Multiplication:
[0.50000000, 0.60000000
 1.14000000, 1.40000000] a

As can be seen, the multiplication of a 2x4 Length with a 4x2 Length matrix results in a 2x2 Area matrix. The 2x2 matrix can be 'cast' to a true Matrix2x2 class with more efficient storage and operations. When printing the content of a matrix, Area units such as are can be used.

Similarly, when multiplying in the opposite way, a 4x2 Length with a 2x4 Length matrix results in a 4x4 Area matrix. This matrix is of type MatrixNxM and could be case to a MatrixNxN with the asMatrixNxN() method, since it is a square matrix. This cast would open the matrix for operations such as inverse, trace and determinant, which are not defined for the MatrixNxM.
